PRECISION MACHINING LEVELER: SERIES GMPL-ML
Our levellers allow you to:
► Precisely level and align machinery.
► Over time, avoiding potential yielding of the worktop, ensuring maximum rigidity.
► Possibility of programming the re-levelling of the machine, without long and uneconomical machine and production stops.
► Have a complete integration between machinery and foundations.
► Reduce the high tensions and distortions of the base due to the stresses of the machinery during the processing phase.
The choice of the Grip leveler must be made considering that the nominal load is greater than or equal to the maximum load of the machinery, the maximum allowable load is used to verify that the jack is not accidentally damaged during the leveling operations of the pallet during the installation of the machine.

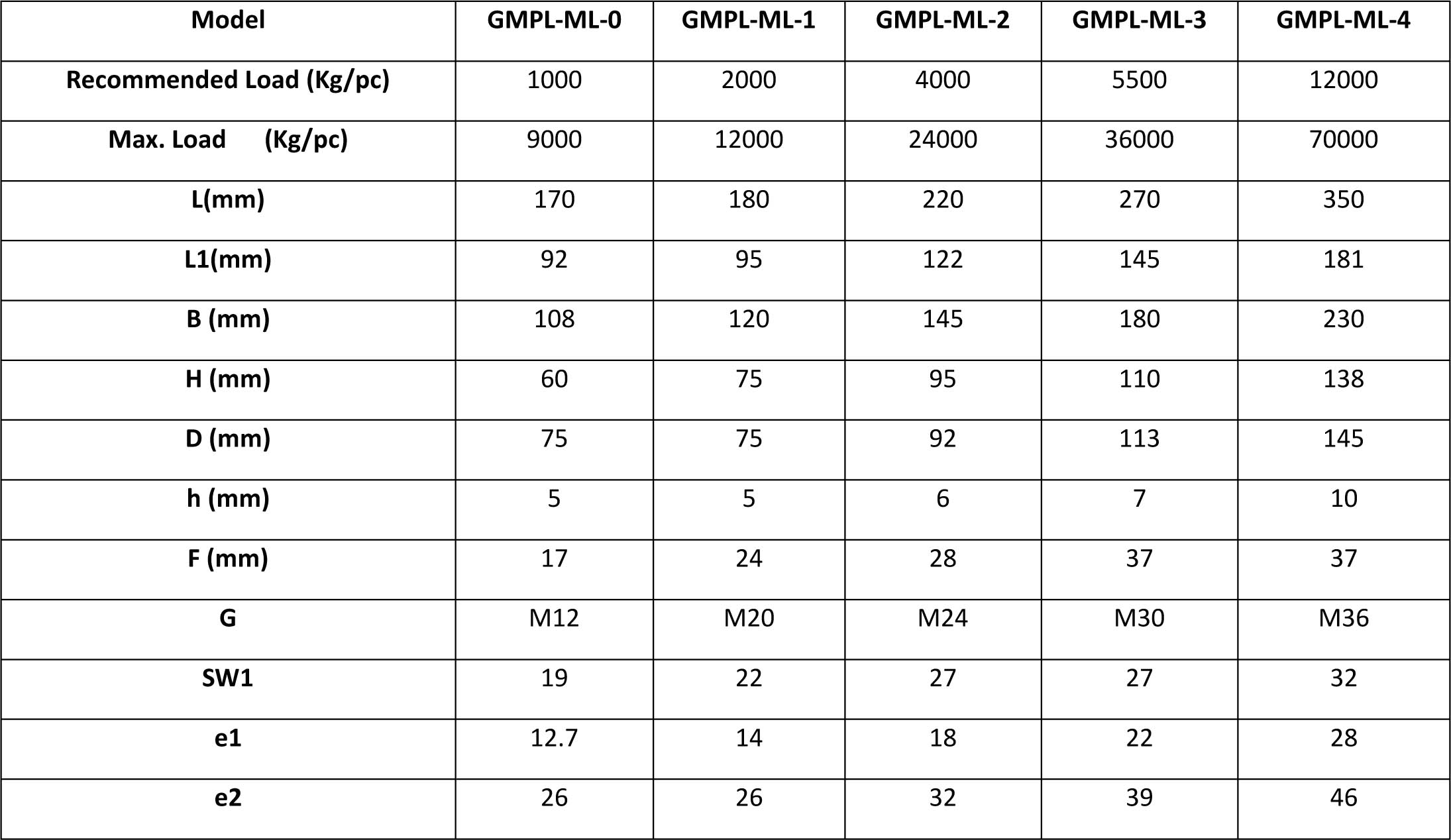

| Model | GMPL-ML-0 | GMPL-ML-1 | GMPL-ML-2 | GMPL-ML-3 | GMPL-ML-4 |
|---|---|---|---|---|---|
| Recommended Load (Kg/pc) | 1000 | 2000 | 4000 | 5500 | 12000 |
| Max. Load (Kg/pc) | 9000 | 12000 | 24000 | 36000 | 70000 |
| L (mm) | 170 | 180 | 220 | 270 | 350 |
| L1 (mm) | 92 | 95 | 122 | 145 | 181 |
| B (mm) | 108 | 120 | 145 | 180 | 230 |
| H (mm) | 60 | 75 | 95 | 110 | 138 |
| D (mm) | 75 | 75 | 92 | 113 | 145 |
| h (mm) | 5 | 5 | 6 | 7 | 10 |
| F (mm) | 17 | 24 | 28 | 37 | 37 |
| G | M12 | M20 | M24 | M30 | M36 |
| SW1 | 19 | 22 | 27 | 27 | 32 |
| e1 | 12.7 | 14 | 18 | 22 | 28 |
| e2 | 26 | 26 | 32 | 39 | 46 |
Note: Please select dimensions 'G' or 'f' at the time of order.
► Vibration Isolation & Shock Dampening: Grip levellers are designed to reduce harmful vibrations and shocks during machine operations.
► Stable Machine Levelling: Grip levellers provide stable levelling using screw or base support systems.
► Precise Adjustment: We offer precise height and angle adjustments to align machines perfectly to the foundation.
► Heavy-Duty Industrial Use: Suitable for heavy machines in factories, workshops, and production lines.
► Heavy Machinery Applications: Grip levellers are engineered to handle significant loads and are used with industrial equipment like machine tools, presses, compressors, generators, and other heavy machines — helping to align, anchor, and re-level them over time.
